Solar Module
Mounting Solutions

A comprehensive range of cold-rolled structural steel profiles engineered for strength, flexibility, and long-term performance.

"Trust the strength, experience the performance."

6+
Profile Types
±0.5mm
Tolerance
30yr+
Lifecycle
Solar MMS Profiles

Precision Cold-Rolled Profiles

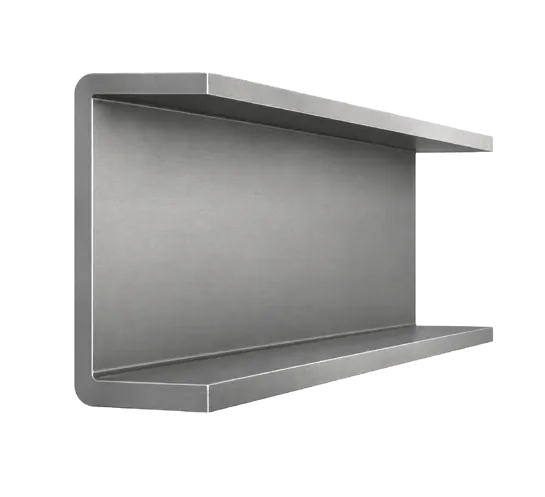

C-Section
Solar MMS Purlins

C - Section

Engineered for high load-bearing with optimized material weight. Suitable for utility-scale solar parks with demanding structural requirements.

Technical Specifications
Thickness0.8 mm – 5 mm
Web Width50 mm – 350 mm
Flange25 mm – 125 mm
Lip0 mm – 35 mm
Yield Strength240–550 MPa
FinishZAM / GI / HDG

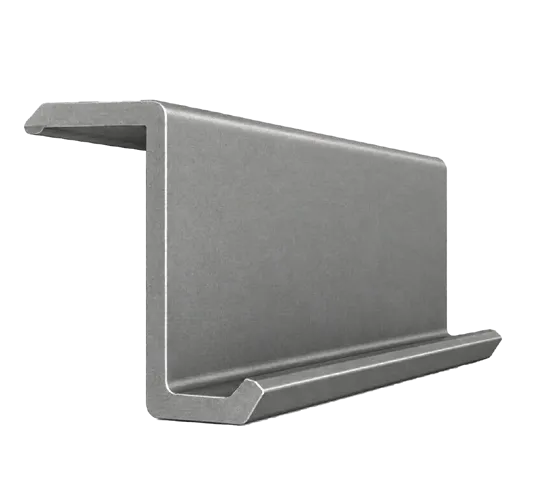

Z Purlin
Modular Overlap

Z Purlin (45° / 90° Lip)

Designed for continuous span applications with overlapping joints that increase structural stiffness and speed up site assembly significantly.

Technical Specifications
Thickness0.8 mm – 4 mm
Lip Options45° & 90°
Yield Strength240–550 MPa
ApplicationContinuous Overlaps
FinishZAM / GI / HDG

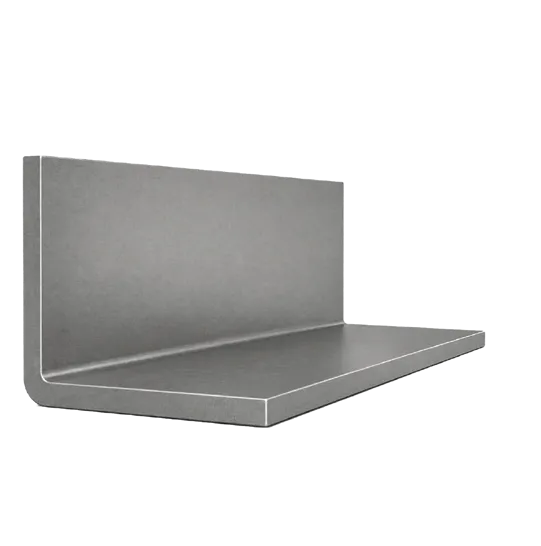

Equal Angle Section
Solar Bracing

Equal Angle Sections

Essential bracing components for lateral structural stability. Designed to resist extreme wind and seismic forces across diverse terrain.

Technical Specifications
Material GradeS350GD / S450GD
Bracing TypeCross / Front / Back
Corrosion ClassC4 / C5 Marine
FinishZAM / GI / HDG

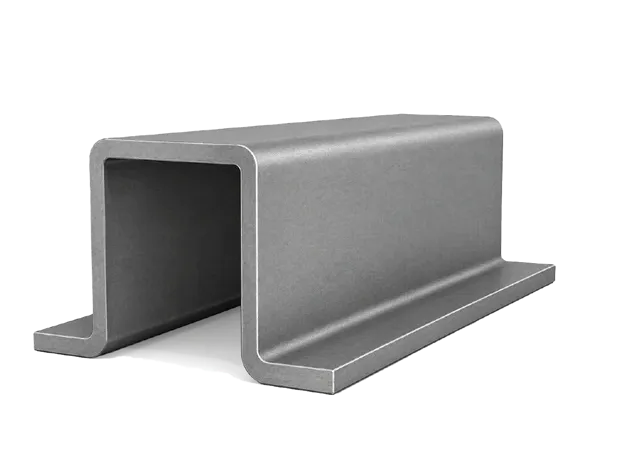

Top Hat Section
Micro-Profiles

Top Hat Sections

Perfect for residential and commercial roof structures. Lightweight yet high-strength with multiple bending degree options.

Technical Specifications
Thickness0.8 mm – 2.5 mm
Web40 mm – 90 mm
Height60 mm – 120 mm
Lip0 mm – 10 mm
Bending65°, 70°, 75°, 90°
Yield Strength240–550 MPa

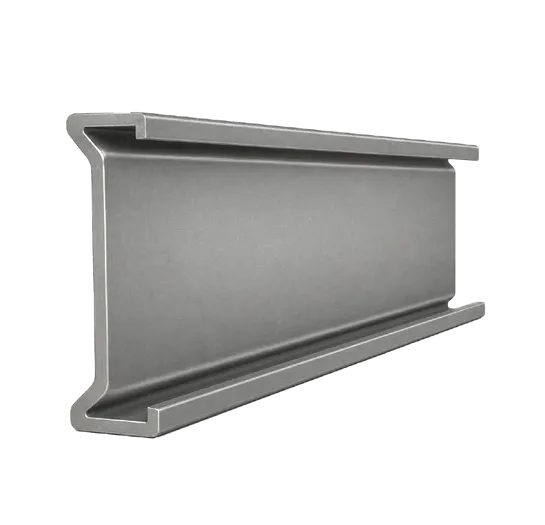

Multi Beam Section
Custom Framing

Multi Beam Sections

High-performance custom profile for structural frameworks demanding extreme torsional strength and dimensional stability.

Technical Specifications
DesignMulti-faceted Roll Forming
FinishZAM / HDG / Galvalume
Lifecycle30+ Years
Tolerance±0.5 mm

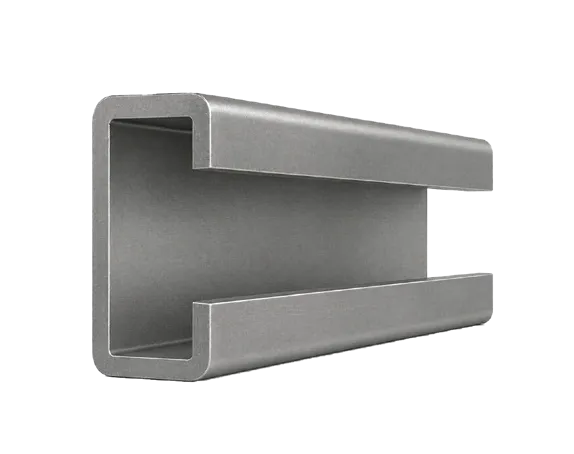

LIP Channels
Structural Channels

LIP Channels

Classic structural purlins with inwardly turned lips to increase compression flange stiffness and load safety margins.

Technical Specifications
PunchingCNC Auto-Punching
Tolerance±0.5 mm
Traceability100% Mill Certified
FinishZAM / GI / HDG

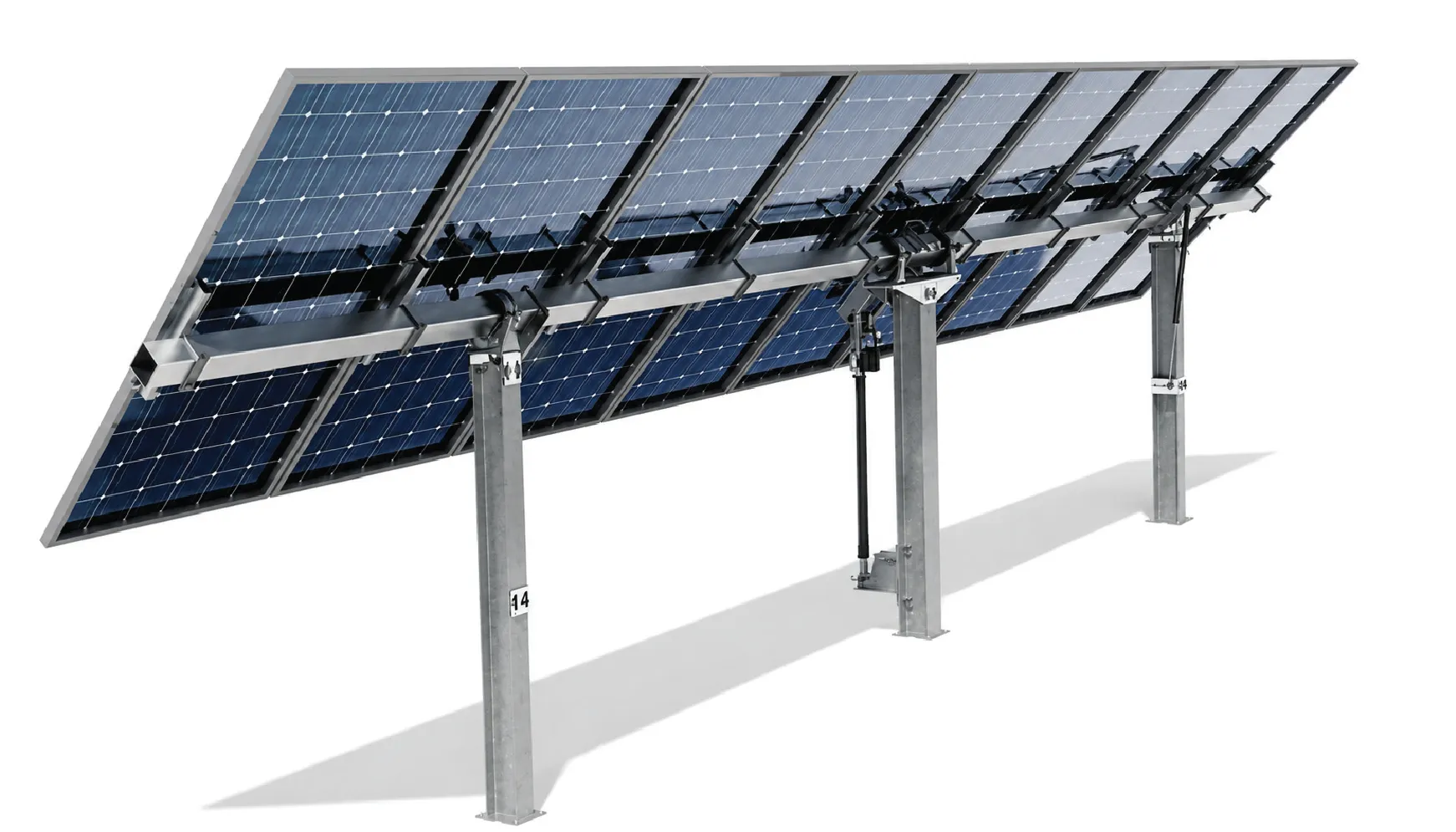

Advanced Tracking

Solar Tracker
Components

In-house solar tracker structural components including Post, Purlin, Torque Tube, TT Connector, and Purlin Reinforcing Plate. These components maximize solar energy generation by enabling panels to follow the sun's movement throughout the day.

100°
Tracking Range
Max Output
Sunlight Capture
Higher
Energy Generation
Stable
Durable Structure
Low
Maintenance Cost
Optimal
Land Usage
Enquire Now
Solar Tracker Components

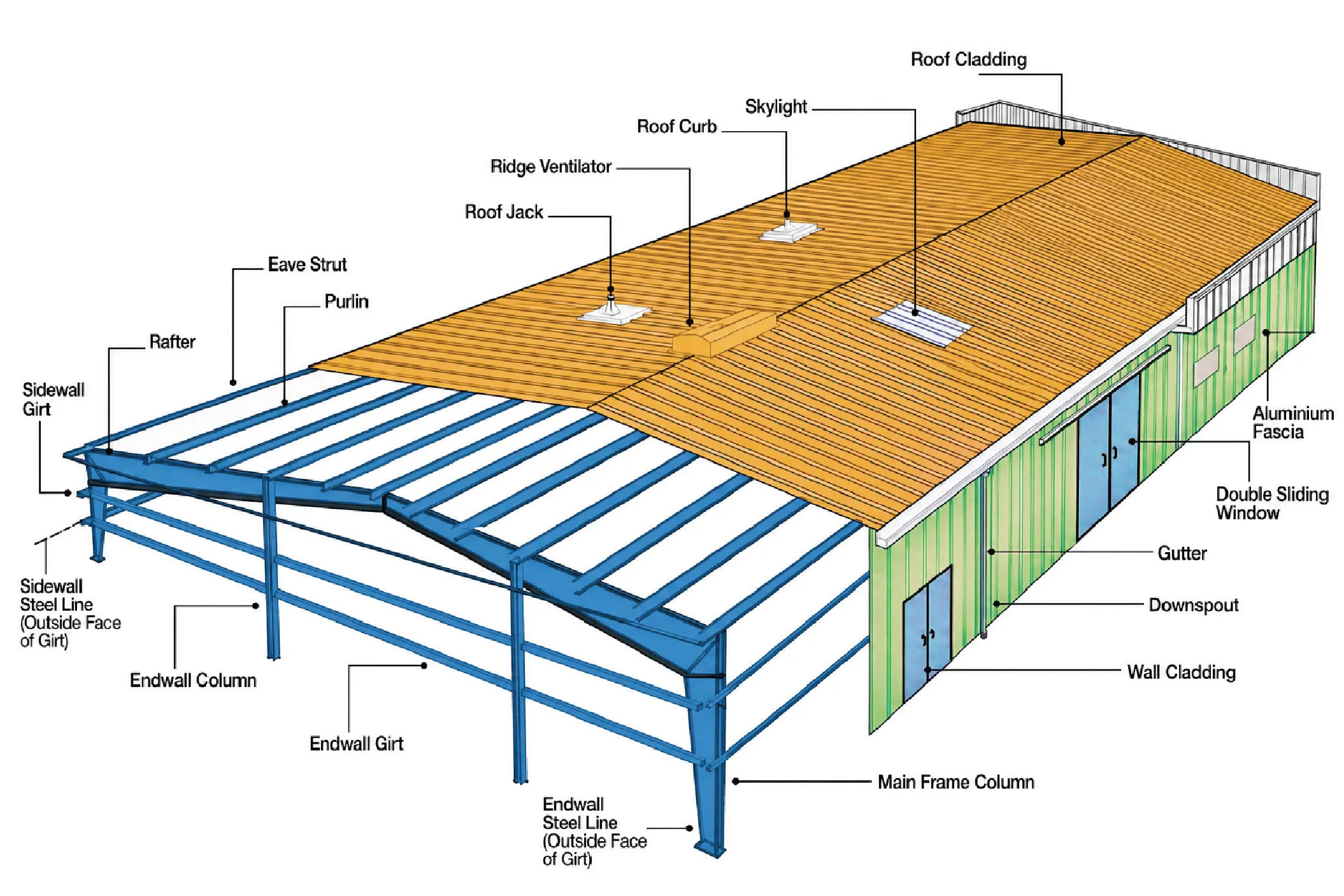

PEB Solutions
Beyond Solar Structures

Pre-Engineered Building
(PEB) Solutions

Advanced Pre-Engineered Building solutions designed for speed, efficiency, and cost-effectiveness. Engineered to meet specific project requirements ensuring flexibility, durability, and optimized structural performance.

From design to execution, we provide complete solutions that reduce construction time while maintaining the highest quality standards.

→ Rapid deployment construction systems
→ Custom-engineered spans & configurations
→ Full design-to-installation support
→ Cost-optimized material usage
Extended Range

Other Product Range

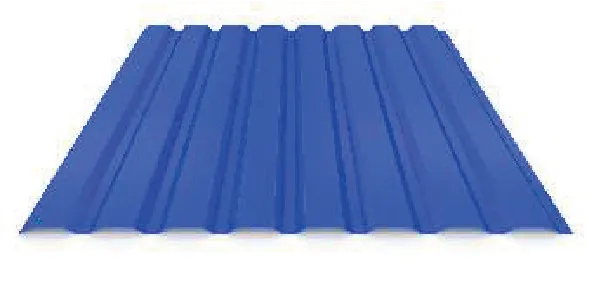

High RIB Profile Sheets
High RIB Profile Sheets

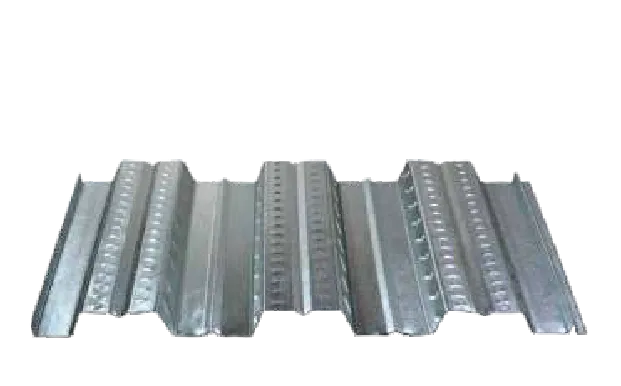

Decking Sheets
Decking Sheets

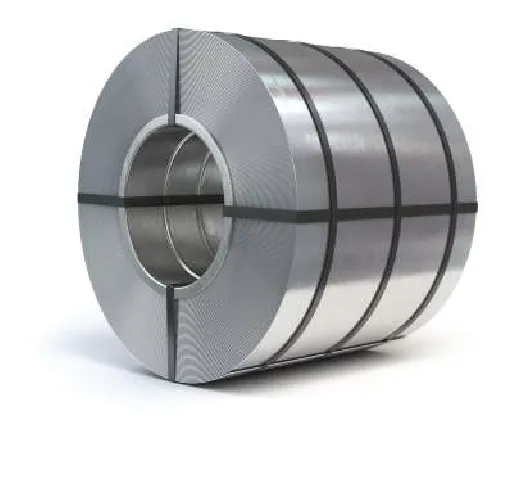

Full Width Slitted Coils
Full Width & Slitted Coils

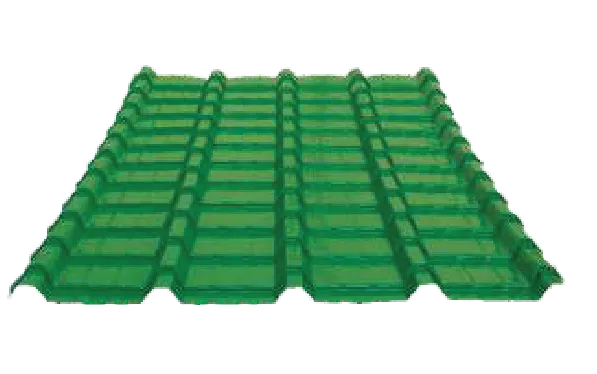

High RIB Tile Profile
High RIB Tile Profile Sheets

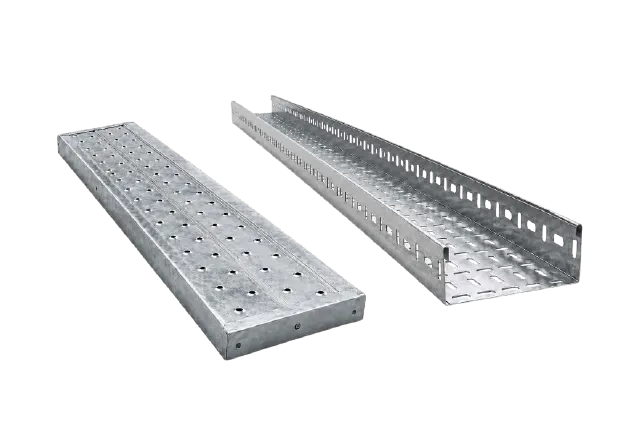

Cable Track Walkway
Cable Track / Walkway Plank

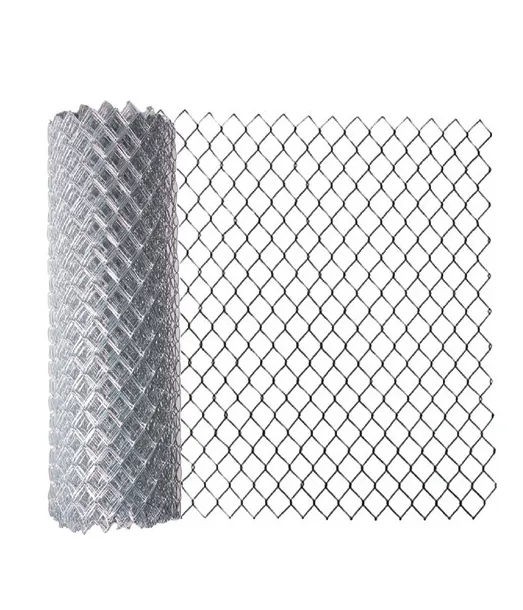

Chainlink Fencing
Chainlink Fencing
Ready to Order?

Request a Custom Quote

Tell us your project specs and we'll engineer the right solution.
